Overview

ctasapp is a Shiny application for exploring results from the ctas (Clinical Timeseries Anomaly Spotter) R package. The data pipeline is:

Raw SDTM domains (dm, lb, vs, rs_onco)
  |
  v
Input_*() helpers               -- transform to ctas input + keep untransformed originals
  |
  v
ctas::process_a_study()         -- compute site-level outlier scores
  |
  v
ctasapp (Shiny visualization)   -- interactive exploration of scores, plots, and data

Each Input_*() helper returns a list with four elements:

Element Description
data Transformed timeseries in ctas format (one row per subject/timepoint/parameter)
subjects Subject metadata (subject_id, site, country, region)
parameters Parameter metadata with plot-type classification
untransformed Pre-transformation values with reference ranges for display

Input data structure

The data element has the following columns:

Column Type Description
subject_id character Subject identifier (USUBJID)
parameter_id character Unique parameter key (e.g. LB_NORM_ALT, VS_SYSBP)
timepoint_rank integer Positional visit index (1, 2, 3, …)
timepoint_1_name character Visit label (e.g. “WEEK 2”, “SCREENING 1”)
timepoint_2_name character Secondary timepoint (usually NA)
baseline logical Baseline flag (usually NA)
result numeric Transformed value for ctas

The parameters element defines each parameter:

Column Type Description
parameter_id character Matches data$parameter_id
parameter_name character Human-readable label
parameter_category_1 character Broad domain (e.g. “Labs”, “Vital Signs”)
parameter_category_2 character Field-level grouping key (e.g. “ALT”, “VS_SYSBP”)
parameter_category_3 character Plot type: see table below

The parameter_category_3 value determines how the parameter is visualized:

parameter_category_3 Plot type Produced by
range_normalized Faceted line plot (values in 0–1 range) Input_Labs via normalize_by_range()
ratio_missing Faceted line plot (paired with range_normalized) Input_Labs via ratio_missing_over_time()
numeric Line plot (raw values) Input_VS
categorical Alluvial / stacked bar plot Input_RS via encode_categorical()
bar Single-timepoint bar chart Input_BMI via encode_categorical()

Example: Input_Labs structure

library(pharmaversesdtm)
data("dm"); data("lb")

labs <- ctasapp::Input_Labs(dm, lb)
str(labs, max.level = 1)
List of 5
 $ data          : tibble [82,918 x 7]
 $ subjects      : tibble [254 x 4]
 $ parameters    : tibble [78 x 5]
 $ untransformed : tibble [46,164 x 6]
head(labs$data[labs$data$parameter_id == "LB_NORM_ALT", ])
  subject_id parameter_id timepoint_rank timepoint_1_name timepoint_2_name baseline    result
  AB12345-01 LB_NORM_ALT              1       SCREENING 1             NA       NA  0.6363636
  AB12345-01 LB_NORM_ALT              2            WEEK 2             NA       NA  0.5454545
  ...
head(labs$parameters)
  parameter_id      parameter_name parameter_category_1 parameter_category_2 parameter_category_3
  LB_NORM_ALT   ALT (norm)         Labs                 ALT                  range_normalized
  LB_MISS_ALT   ALT (missing)      Labs                 ALT                  ratio_missing
  LB_NORM_ALKPH ALKPH (norm)        Labs                 ALKPH                range_normalized
  LB_MISS_ALKPH ALKPH (missing)     Labs                 ALKPH                ratio_missing
  ...

Data transformations

Range normalization

normalize_by_range() transforms lab values into a 0–1 scale using reference ranges. Values within the normal range fall between 0 and 1; below-range values are negative, above-range are greater than 1.

result=value−lowerupper−lower\text{result} = \frac{\text{value} - \text{lower}}{\text{upper} - \text{lower}}

value <- c(15, 30, 45, 60)
lower <- rep(10, 4)
upper <- rep(50, 4)

normalize_by_range(value, lower, upper)
#> [1] 0.125 0.500 0.875 1.250

Input_Labs() applies this to each lab parameter, producing rows with parameter_id = "LB_NORM_<LBTESTCD>" and parameter_category_3 = "range_normalized".

Ratio of missing values

ratio_missing_over_time() computes a running proportion of missing (NA) values per subject and parameter. At timepoint kk, the value is:

ratiok=∑i=1k𝟏[valuei=NA]k\text{ratio}_k = \frac{\sum_{i=1}^{k} \mathbf{1}[\text{value}_i = \text{NA}]}{k}

A subject with no missing values always has ratio 0. One with all values missing has ratio 1.

value <- c(10, NA, 30, NA, 50)
subject_id <- rep("subj_1", 5)
parameter_id <- rep("ALT", 5)

ratio_missing_over_time(value, subject_id, parameter_id)
#> [1] 0.0000000 0.5000000 0.3333333 0.5000000 0.4000000

Input_Labs() produces these rows with parameter_id = "LB_MISS_<LBTESTCD>" and parameter_category_3 = "ratio_missing". The missingness parameter shares the same parameter_category_2 as its range-normalized sibling (e.g. both LB_NORM_ALT and LB_MISS_ALT have parameter_category_2 = "ALT"). In the app, these are displayed as a faceted pair: the upper facet shows the normalized values, the lower shows the missingness ratio.

Categorical encoding

encode_categorical() one-hot encodes a categorical variable into a long format. Each observation is expanded into one row per category level, with encoded = 1 where the observation matches the level and encoded = 0 otherwise.

responses <- c("CR", "PR", "SD", "PD", "CR", "SD")
encoded <- encode_categorical(responses, prefix = "RS_OVRLRESP")
head(encoded, 10)
#>    orig_row          level encoded
#> 1         1 RS_OVRLRESP=CR       1
#> 2         2 RS_OVRLRESP=CR       0
#> 3         3 RS_OVRLRESP=CR       0
#> 4         4 RS_OVRLRESP=CR       0
#> 5         5 RS_OVRLRESP=CR       1
#> 6         6 RS_OVRLRESP=CR       0
#> 7         1 RS_OVRLRESP=PD       0
#> 8         2 RS_OVRLRESP=PD       0
#> 9         3 RS_OVRLRESP=PD       0
#> 10        4 RS_OVRLRESP=PD       1

Input_RS() uses this to transform RSORRES values. The resulting parameter_id values are "RS_OVRLRESP=CR", "RS_OVRLRESP=PD", etc., and parameter_category_3 = "categorical". The app renders these as alluvial plots showing how response categories flow across visits.

Bar (single-timepoint categorical)

Input_BMI() creates a screening-only weight category from vital signs. Weights are binned into categories (< 60 kg, 60-80 kg, 80-100 kg, >= 100 kg), then one-hot encoded like Input_RS. With only a single timepoint per subject, parameter_category_3 = "bar" signals that the app should render a bar chart rather than an alluvial plot.

library(pharmaversesdtm)
data("dm"); data("vs")

bmi <- ctasapp::Input_BMI(dm, vs)
head(bmi$parameters)
  parameter_id                parameter_name parameter_category_1 parameter_category_2 parameter_category_3
  VS_WEIGHT_CAT=60-80 kg     60-80 kg       Vital Signs          VS_WEIGHT_CAT        bar
  VS_WEIGHT_CAT=80-100 kg    80-100 kg      Vital Signs          VS_WEIGHT_CAT        bar
  VS_WEIGHT_CAT=>= 100 kg    >= 100 kg      Vital Signs          VS_WEIGHT_CAT        bar
  VS_WEIGHT_CAT=< 60 kg      < 60 kg        Vital Signs          VS_WEIGHT_CAT        bar

Plain numeric

Input_VS() passes vital-sign measurements through without transformation. The raw VSSTRESN values become result, and parameter_category_3 = "numeric". These are rendered as simple line plots in the app.

library(pharmaversesdtm)
data("dm"); data("vs")

vs_input <- ctasapp::Input_VS(dm, vs)
head(vs_input$data[vs_input$data$parameter_id == "VS_SYSBP", ])
  subject_id parameter_id timepoint_rank timepoint_1_name result
  AB12345-01 VS_SYSBP              1       SCREENING 1      132
  AB12345-01 VS_SYSBP              2       BASELINE          128
  AB12345-01 VS_SYSBP              3       WEEK 2            130
  ...

Example plots

The package bundles pre-computed sample data (sample_sdtm_data and sample_sdtm_results) derived from pharmaversesdtm. These can be used directly to generate all plot types.

m <- prepare_measures(sample_sdtm_data, sample_sdtm_results)

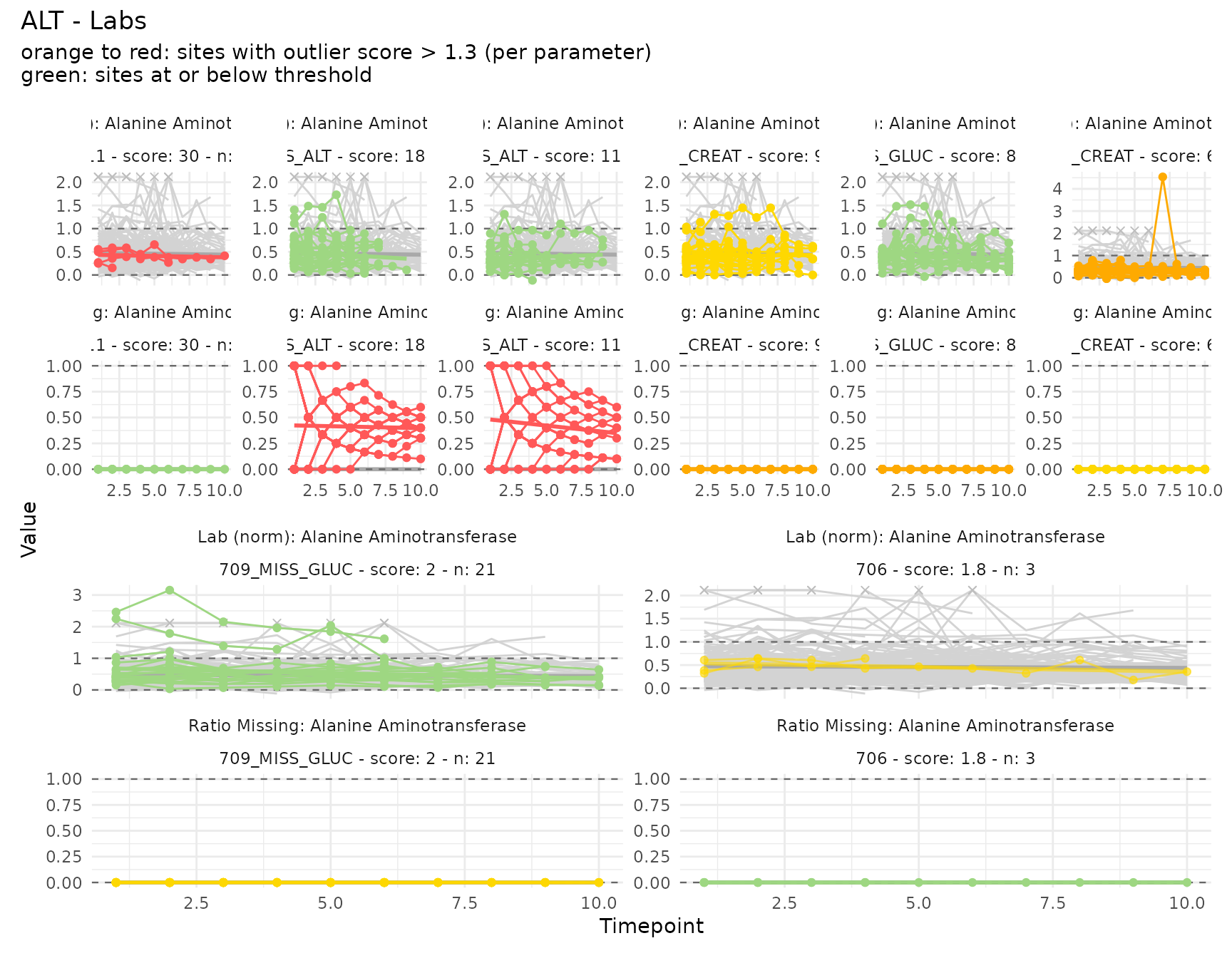

Range-normalized lab values with missingness ratio

The ALT parameter has both LB_NORM_ALT (range-normalized) and LB_MISS_ALT (missingness ratio). They are plotted together as a faceted pair.

plot_timeseries(c("LB_NORM_ALT", "LB_MISS_ALT"), m, thresh = 1.3)

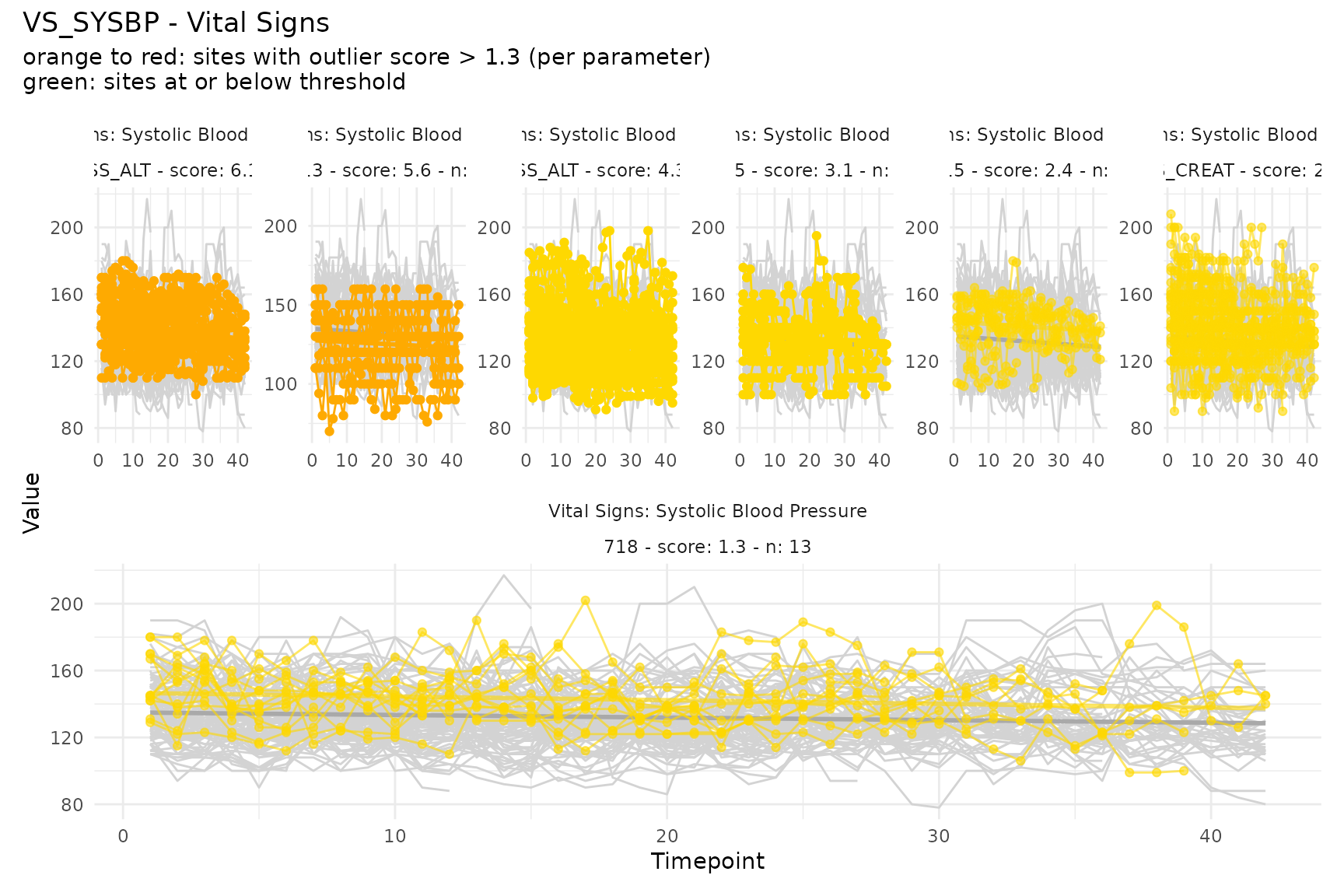

Plain numeric vital signs

Systolic blood pressure (VS_SYSBP) uses raw numeric values without normalization.

plot_timeseries("VS_SYSBP", m, thresh = 1.3)

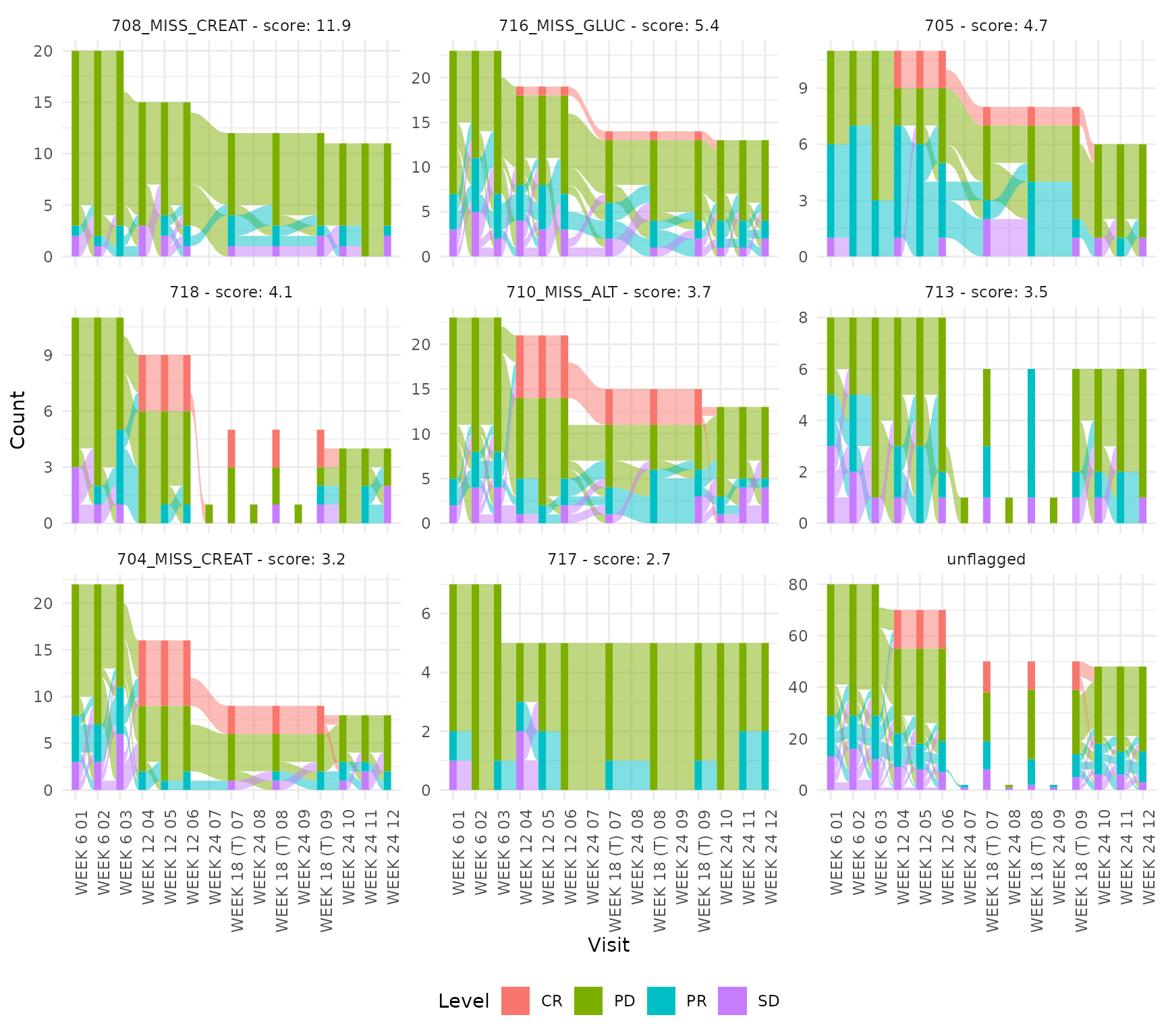

Categorical (alluvial)

Overall response (RS_OVRLRESP) categories are displayed as an alluvial plot showing transitions across visits.

cat_ids <- unique(m$parameter_id[grepl("^RS_OVRLRESP=", m$parameter_id)])
plot_categorical(cat_ids, m, thresh = 1.3)

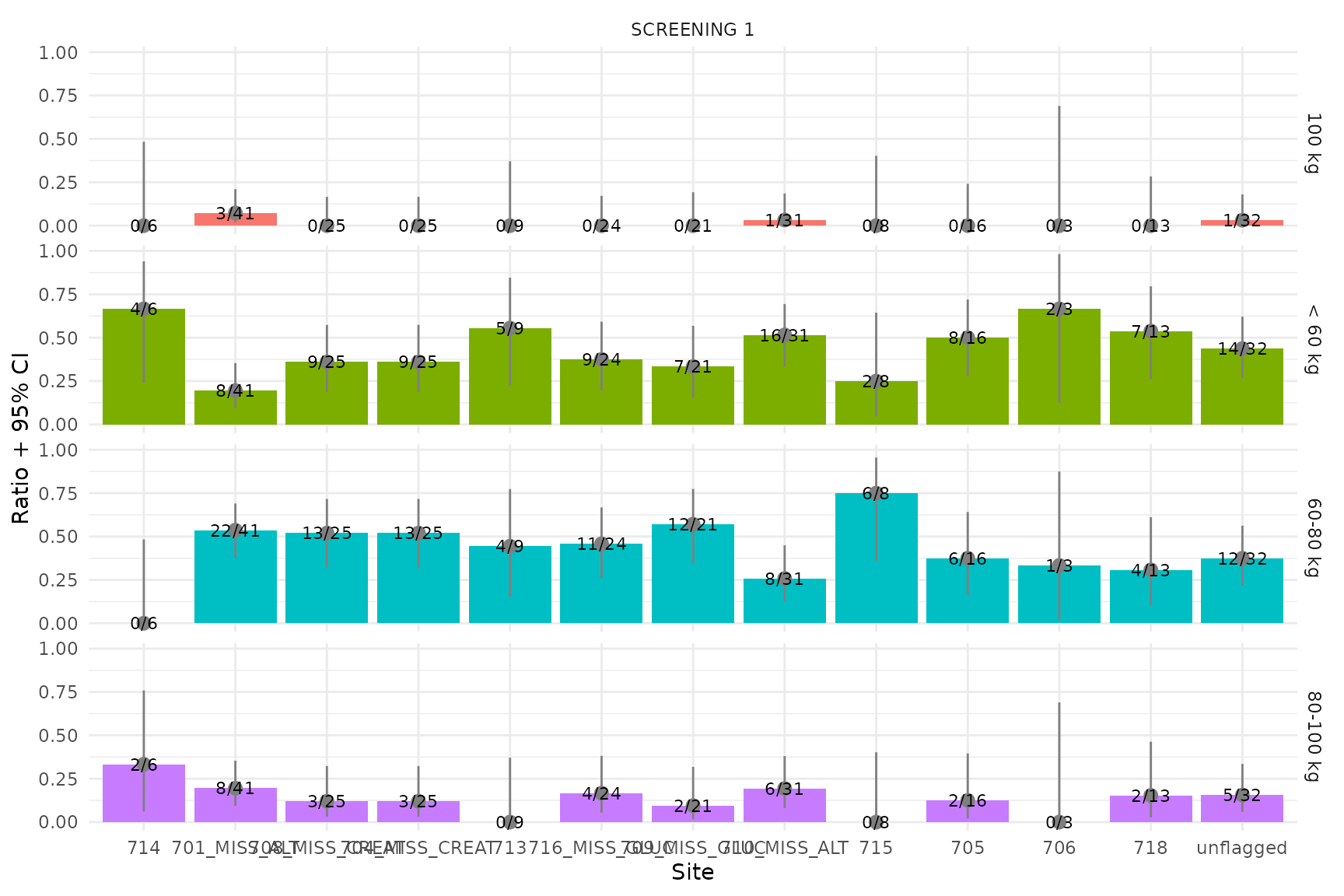

Bar (single-timepoint)

Screening weight categories are displayed as a bar chart since there is only one timepoint per subject.

bar_ids <- unique(m$parameter_id[grepl("^VS_WEIGHT_CAT=", m$parameter_id)])
plot_bar(bar_ids, m, thresh = 1.3)
#> Warning: There were 32 warnings in `dplyr::mutate()`.
#> The first warning was:
#> ℹ In argument: `ci95_low = purrr::map2_dbl(...)`.
#> Caused by warning in `stats::prop.test()`:
#> ! Chi-squared approximation may be incorrect
#> ℹ Run `dplyr::last_dplyr_warnings()` to see the 31 remaining warnings.

Uploading your own data

The app supports uploading custom data via 2 mandatory and 2 optional flat files (CSV, Parquet, or RDA):

File Required Description
Results Yes Pre-joined site_scores + timeseries from ctas::process_a_study()
Input Yes Pre-joined data + subjects + parameters (one row per observation)
Untransformed No Original values before transformation (for display in data tables)
Queries No Clinical query records (overlaid as dots on plots)

See the collapsible “File format documentation” panel in the app’s Data tab for full column specifications. An optional study column in the Input file enables multi-study filtering in the Fields panel.

Generating example upload files

Use generate_sample_csv() to create a set of example CSV files from the bundled sample data. This is useful for trying the upload feature or as a template for your own data:

generate_sample_csv("~/my_upload_files")

This writes results.csv, input.csv, untransformed.csv, and queries.csv into the specified directory. The files combine both sample datasets (sample_ctas_data as STUDY-001 and sample_sdtm_data as STUDY-002) into a multi-study upload example.
